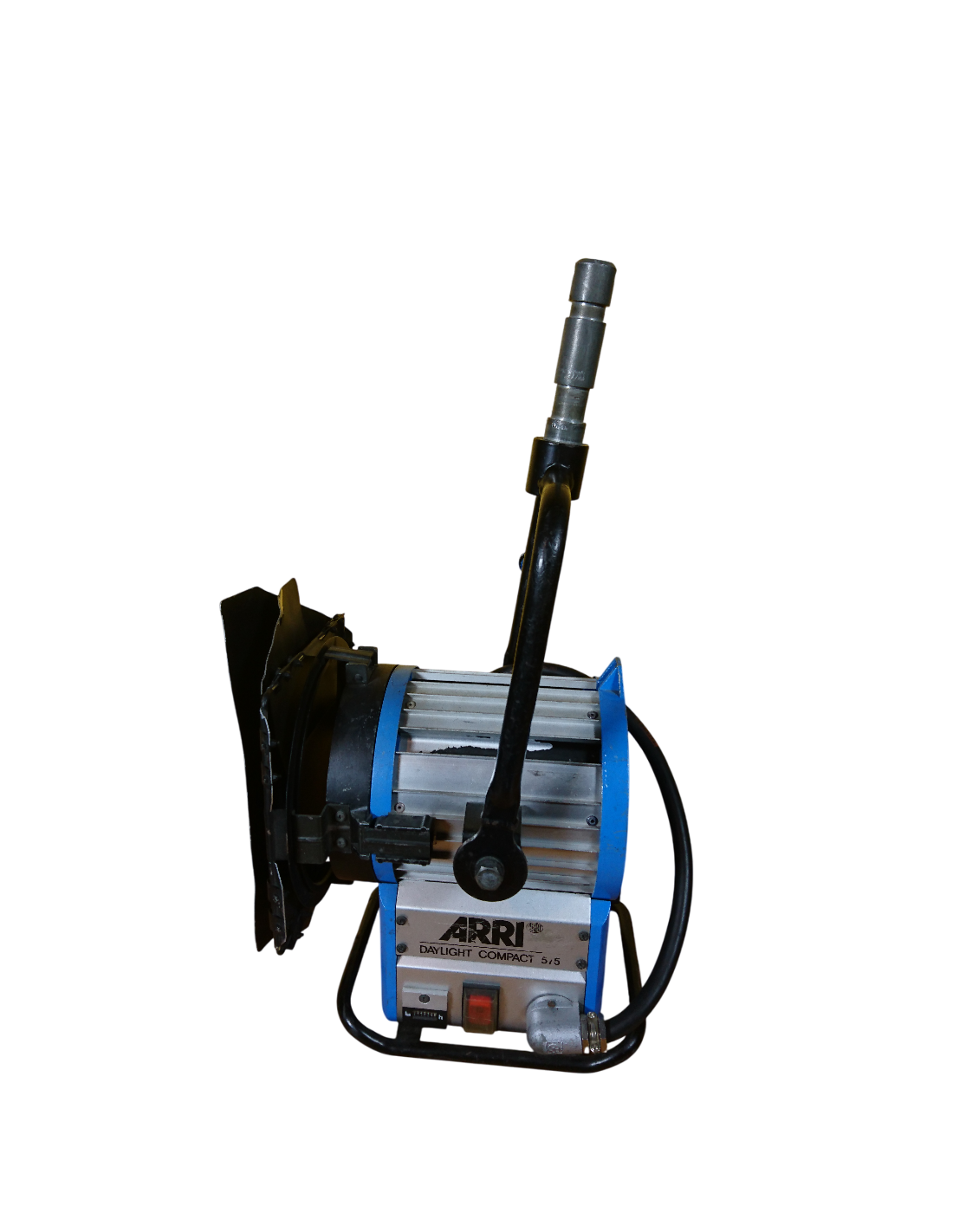

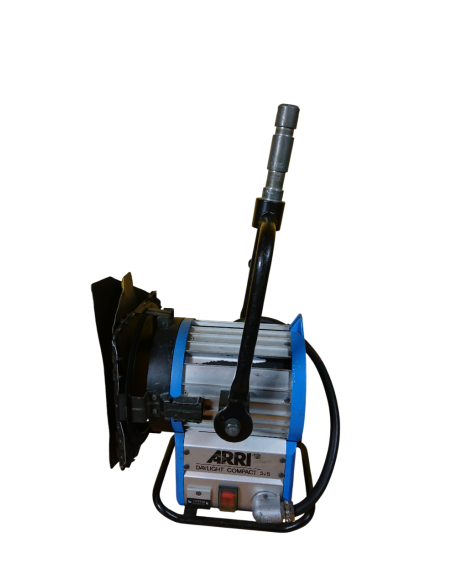

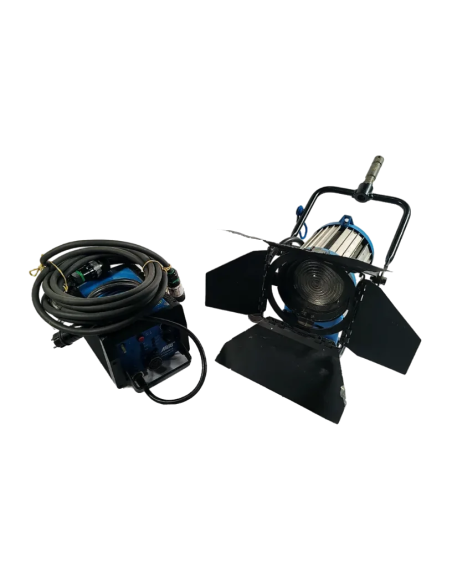

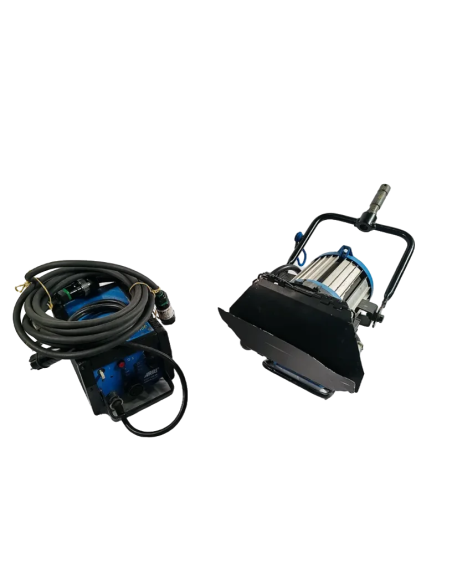

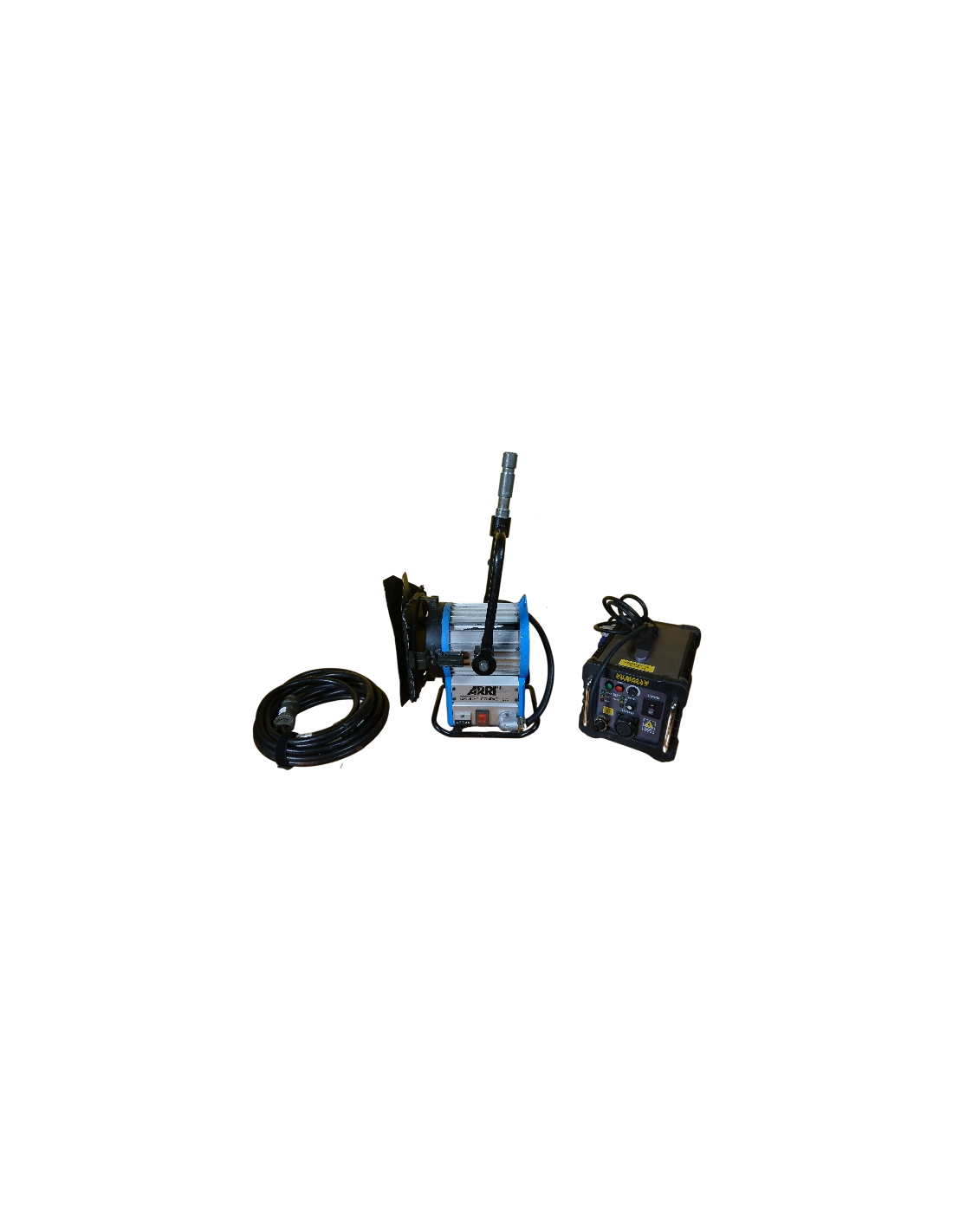

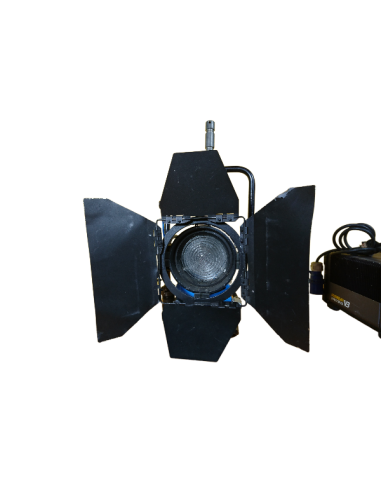

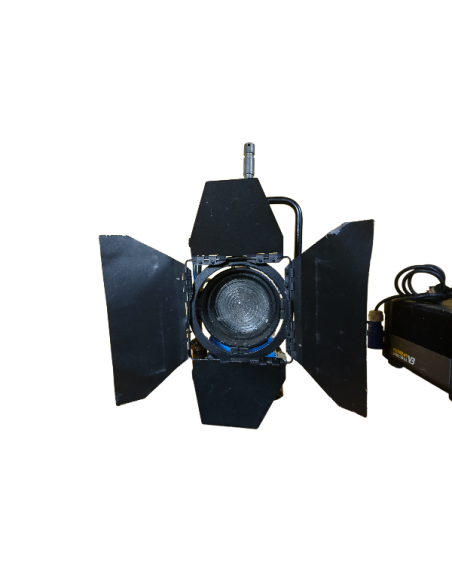

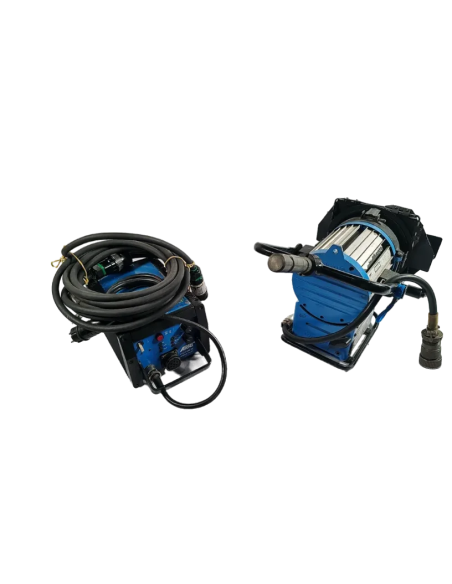

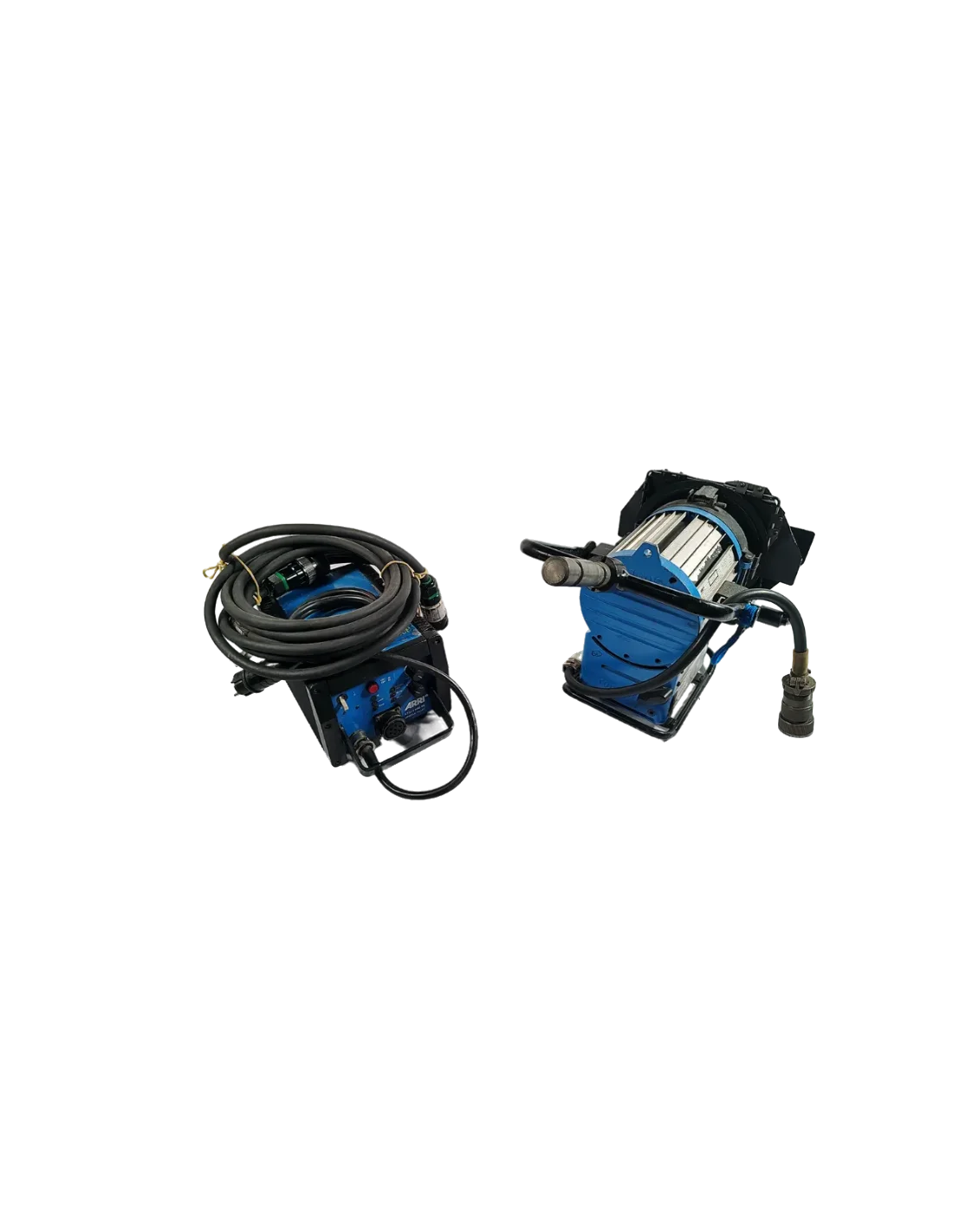

ARRI compact 575 Fresnel
ARRI compact 575 Fresnel has a reduced size making it an easily trasportable light. At 6.9″ it provides a short focal length giving a smooth, even field of light. ARRI elegant modular construction, using corrosion free aluminium extrusions and light weight die castings, offers great structural strength and weather resistance.
- Category
- HMI
- Series
- Compact
- Model
- Daylight 575
- Power Consumption
- 575 W
- Voltage Range
- 230 / 115 V
- Lamp Base
- G22
- Dimming
- yes, 0 to 100 % via external dimming system
- Correlated Color Temperature
- 5600K
- Beam Angle
- 8° to 60°
- Weight in kg net*
- 7.9 kg
- Measurements (HxWxL) in mm*
- 272 x 312 x 290 mm
- Lens / UV-Protection Glass Diameter in mm
- 130 mm
- Protection Class / IP Rating
- 1 / IP 23
- Certifications
- CE, CB, GS, cNRTL
2462
Used
