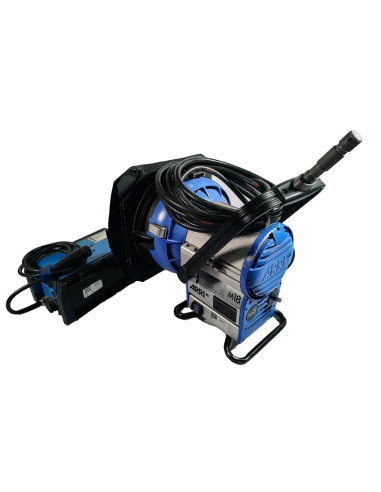

The M18 is an 1,800 W open-face lamphead, combining the innovative True Blue desing with the Academy Scientific and Engineering Awardwinning lens-less optical technology of the ARRIMAX. The result is an extremely powerful lamphead, as small as a 1,200 W PAR lamphead but with a 70 % higher light output. The M-Series M18 fixture is adjustable from 15° to 58° without requiring spread lenses.


In Stock
Ask about product
ARRI M18 M-Series

ARRI M18 M-Series




Category
HMI
Series
M-Series
Model
M-Series M18
Reflector
MAX Technology reflector made of high purity aluminium
Lamp Type
Metal Halide 1,800 W/SE Metal Halide 1,200 W/SE
Power Consumption
1200 / 1800 W
Lamp Base
G38
Lens / UV-Protection Glass Diameter in mm
276 mm
Accessory Diameter in mm
330 mm
Protection Class / IP Rating
1 / IP 23
Certifications
CE, UKCA, CB, ENEC, cNRTLus
Max. Surface Temp.
160 ºC
Max. Ambient Temp.
45 ºC
Min. Distance to Illuminated Object
7 m
Min. Distance to Flammable Object
1m
97400
Used
